【Flowable】 SpringBoot 集成 FlowableUI

在 Flowable 工作流开发中大家最为头疼的应该就是流程设计器的整合了。常见的整合方式有两种

在实际项目中集成 FlowableUI 这个官方的设计器
通过开源的组件比如 LogicFLow 或者 EasyFlow 等来处理或者通过 bpmn.js 自己来搞定流程设计

本文就给大家介绍下在 SpringBoot 项目中如何的来集成 FlowableUI 设计器。

二、FlowableUI 集成

1.FlowableUI 简单介绍

在 Flowable6.4 及之前在 FlowableUI 中都是分成了几个模块

starter	描述
flowable-modeler	让具有建模权限的用户可以创建流程模型、表单、选择表与应用定义。
flowable-idm	身份管理应用。为所有 Flowable UI 应用提供单点登录认证功能，并且为拥有 IDM 管理员权限的用户提供了管理用户、组与权限的功能
flowable-task	运行时任务应用。提供了启动流程实例、编辑任务表单、完成任务，以及查询流程实例与任务的功能。
flowable-admin	管理应用。让具有管理员权限的用户可以查询 BPMN、DMN、Form 及 Content 引擎，并提供了许多选项用于修改流程实例、任务、作业等。管理应用通过 REST API 连接至引擎，并与 Flowable Task 应用及 Flowable REST 应用一同部署。
flowable-rest	Flowable 页面包含的常用 REST API

在当前最新的 6.7.2 中已经把这几个模块都整合到了一个 war 包中就大大的简化了我们整合的步骤了。

2. 官网源码下载

首先我们需要从官方的 GitHub 下载最新的源码文件。地址是：github.com/flowable/fl…

下载成功后，解压缩获取里面的 flowable-ui 的源码，并可以拷贝出来，放到我们独立的工作空间

然后拷贝到对应的工作空间，就可以打开运行了。

3.FlowableUI 源码介绍

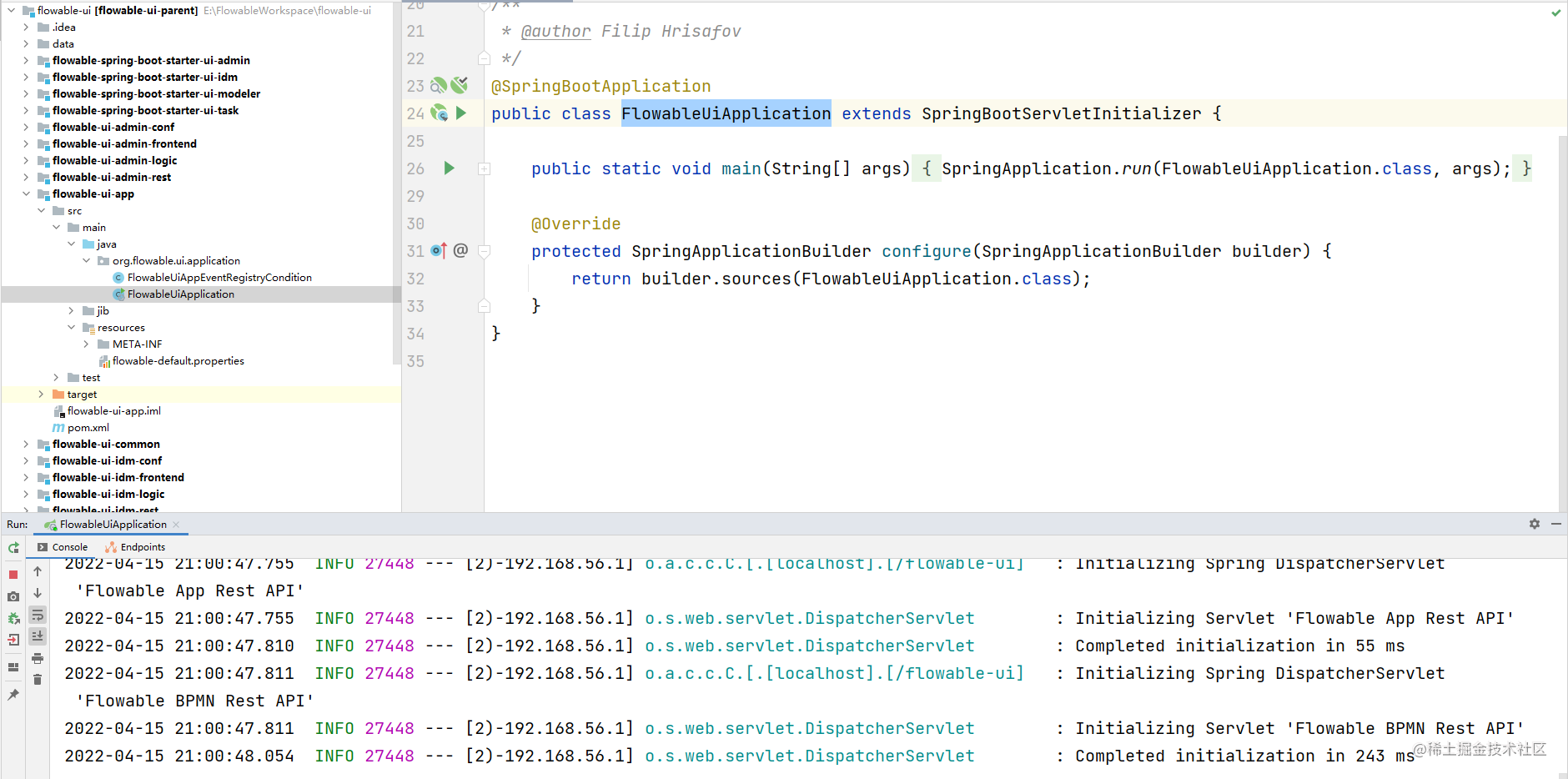

在 IDEA 中打开 FlowableUI 的源码。结构为：

我们可以看到整个的目录结构就是一个 maven 的聚合项目，其中的 web 项目就是 flowable-ui-app 这个，我们可以通过其中的 SpringBoot 项目的启动类来直接启动这个项目就可以来访问了。

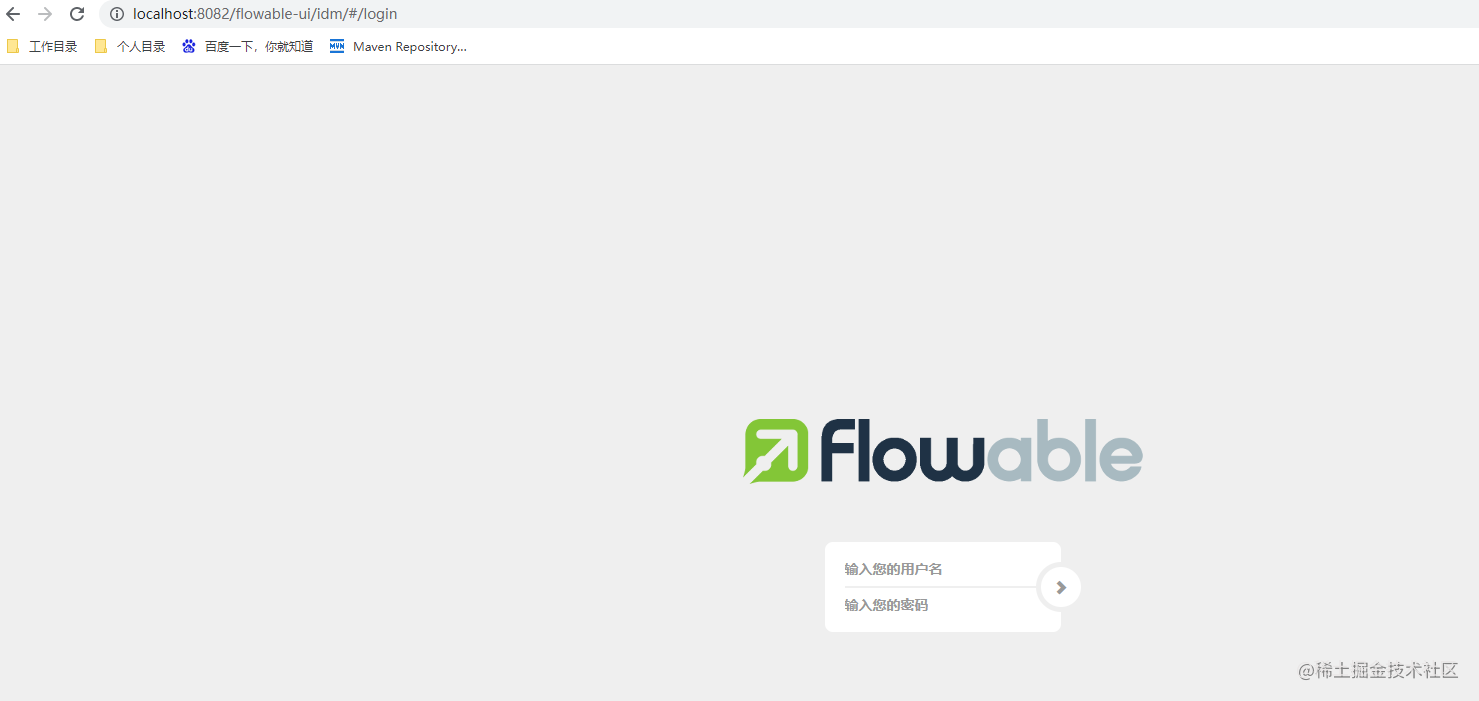

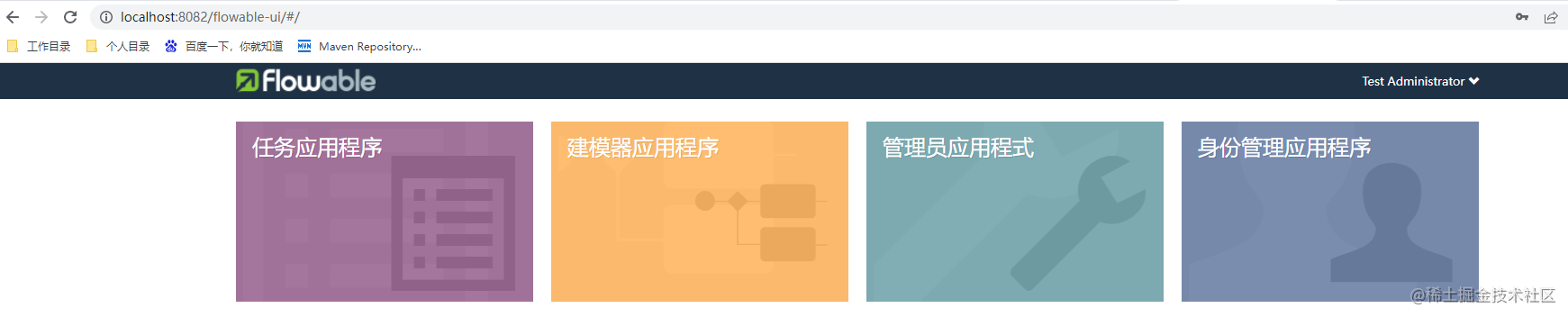

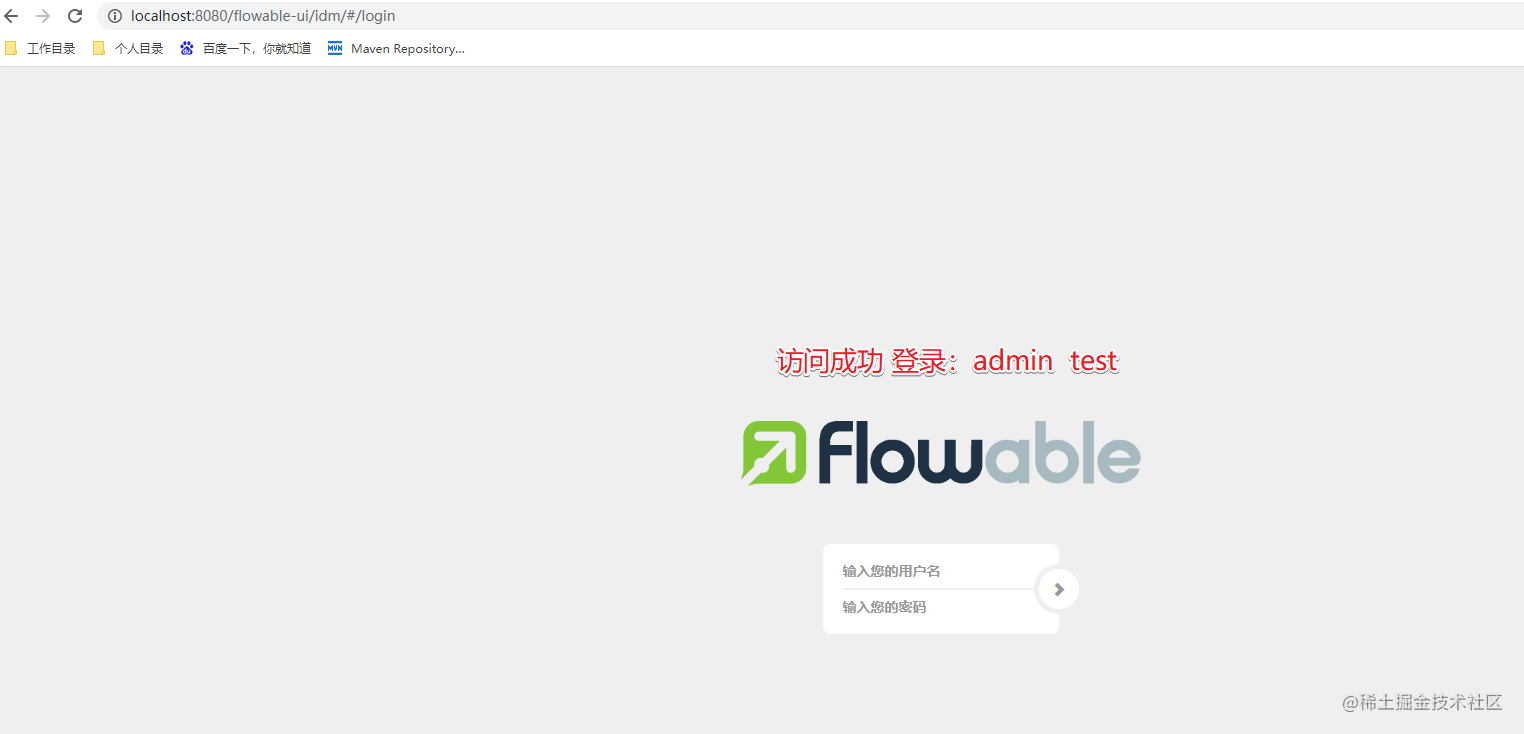

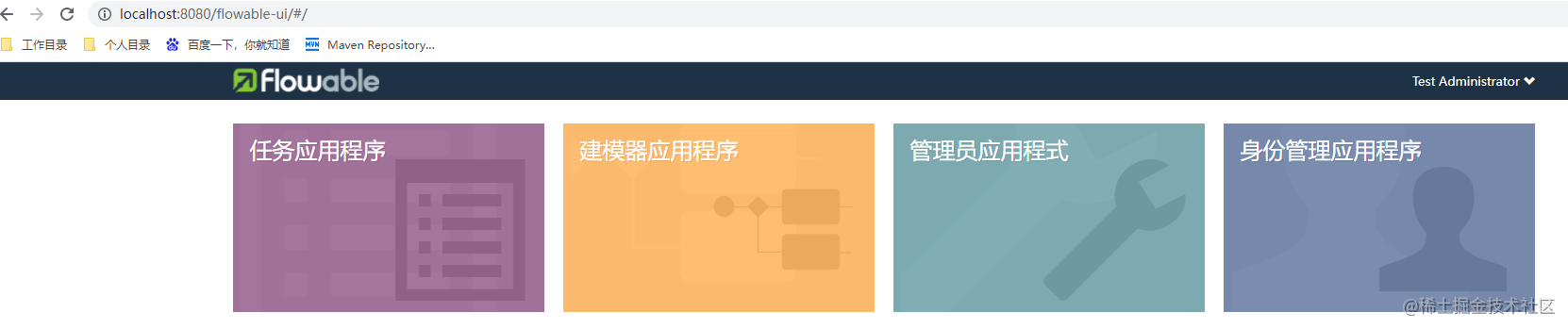

启动成功，可以访问 http://localhost:8080/flowable-ui

具体的操作步骤就不演示了。

4.SpringBoot 项目整合

然后我们来看看怎么在我们自己创建的 SpringBoot 项目来整合 FlowableUI，其实通过上面的操作大家应该会有对应的想法了，我们只需要创建一个 SpringBoot 项目，然后把 flowable-ui-app 中的相关资源拷贝到 SpringBoot 项目中，并且添加对应的依赖就可以了。

4.1 创建项目

我们先创建一个普通的 SpringBoot 项目

4.2 添加相关的依赖

直接从 flowable-ui-app 中的 pom.xml 中拷贝对应的依赖，并删除对应的无用的插件。同时添加 mysql 数据库的依赖，完整的依赖如下

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
     xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
<modelVersion>4.0.0</modelVersion>
<parent>
    <groupId>org.flowable</groupId>
    <artifactId>flowable-ui-parent</artifactId>
    <version>6.7.2</version>
</parent>
<groupId>com.boge.flowable</groupId>
<artifactId>boge-flowable-ui</artifactId>
<version>6.7.2</version>
<name>BogeFlowableUI</name>
<description>Demo project for Spring Boot</description>
<properties>
    <java.version>1.8</java.version>
</properties>
<dependencies>
    <dependency>
        <groupId>org.flowable</groupId>
        <artifactId>flowable-spring-boot-starter-ui-task</artifactId>
    </dependency>
    <dependency>
        <groupId>org.flowable</groupId>
        <artifactId>flowable-spring-boot-starter-ui-admin</artifactId>
    </dependency>
    <dependency>
        <groupId>org.flowable</groupId>
        <artifactId>flowable-spring-boot-starter-ui-idm</artifactId>
    </dependency>
    <dependency>
        <groupId>org.flowable</groupId>
        <artifactId>flowable-spring-boot-starter-ui-modeler</artifactId>
    </dependency>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-activemq</artifactId>
    </dependency>

    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-amqp</artifactId>
    </dependency>

    <dependency>
        <groupId>org.springframework.kafka</groupId>
        <artifactId>spring-kafka</artifactId>
    </dependency>

    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-oauth2-client</artifactId>
    </dependency>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-oauth2-resource-server</artifactId>
    </dependency>

    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-tomcat</artifactId>
        <scope>provided</scope>
    </dependency>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-devtools</artifactId>
        <scope>provided</scope>
    </dependency>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-actuator</artifactId>
    </dependency>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-configuration-processor</artifactId>
        <optional>true</optional>
    </dependency>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-properties-migrator</artifactId>
    </dependency>

    <!-- DATABASE -->
    <dependency>
        <groupId>mysql</groupId>
        <artifactId>mysql-connector-java</artifactId>
        <version>8.0.28</version>
    </dependency>

    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-test</artifactId>
        <scope>test</scope>
    </dependency>
    <dependency>
        <groupId>net.javacrumbs.json-unit</groupId>
        <artifactId>json-unit-assertj</artifactId>
        <scope>test</scope>
    </dependency>
    <!-- LDAP dependencies needed for testing purposes -->
    <dependency>
        <groupId>org.springframework.ldap</groupId>
        <artifactId>spring-ldap-core</artifactId>
        <scope>test</scope>
    </dependency>
    <dependency>
        <groupId>com.unboundid</groupId>
        <artifactId>unboundid-ldapsdk</artifactId>
        <scope>test</scope>
    </dependency>

</dependencies>

<!-- BUILD -->
<build>

    <finalName>flowable-ui</finalName>

    <resources>
        <resource>
            <directory>src/main/resources</directory>
            <filtering>true</filtering>
            <includes>
                <include>**/*</include>
            </includes>
        </resource>
    </resources>
</build>
<profiles>
    <profile>
        <id>h2mem</id>
        <activation>
            <activeByDefault>true</activeByDefault>
        </activation>
        <dependencies>
            <dependency>
                <groupId>com.h2database</groupId>
                <artifactId>h2</artifactId>
            </dependency>
        </dependencies>
        <build>
            <plugins>
                <plugin>
                    <groupId>org.springframework.boot</groupId>
                    <artifactId>spring-boot-maven-plugin</artifactId>
                    <configuration>
                        <arguments>
                            <argument>--com.sun.management.jmxremote.port=4001</argument>
                        </arguments>
                    </configuration>
                </plugin>
            </plugins>
        </build>
    </profile>
    <profile>
        <id>postgresql</id>
        <dependencies>
            <dependency>
                <groupId>org.postgresql</groupId>
                <artifactId>postgresql</artifactId>
                <scope>runtime</scope>
            </dependency>
        </dependencies>
        <build>
            <plugins>
                <plugin>
                    <groupId>org.springframework.boot</groupId>
                    <artifactId>spring-boot-maven-plugin</artifactId>
                    <configuration>
                        <arguments>
                            <argument>--spring.datasource.driver-class-name=org.postgresql.Driver</argument>
                            <argument>--spring.datasource.url=jdbc:postgresql://localhost:5432/flowable</argument>
                            <argument>--spring.datasource.username=flowable</argument>
                            <argument>--spring.datasource.password=flowable</argument>
                            <argument>--com.sun.management.jmxremote.port=4000</argument>
                        </arguments>
                    </configuration>
                </plugin>
            </plugins>
        </build>
    </profile>
    <profile>
        <id>mysql</id>
        <dependencies>
            <dependency>
                <groupId>mysql</groupId>
                <artifactId>mysql-connector-java</artifactId>
                <scope>compile</scope>
            </dependency>
        </dependencies>
        <build>
            <plugins>
                <plugin>
                    <groupId>org.springframework.boot</groupId>
                    <artifactId>spring-boot-maven-plugin</artifactId>
                    <configuration>
                        <arguments>
                            <argument>--spring.datasource.driver-class-name=com.mysql.jdbc.Driver</argument>
                            <argument>--spring.datasource.url=jdbc:mysql://127.0.0.1:3306/flowable?characterEncoding=UTF-8&serverTimezone=UTC</argument>
                            <argument>--spring.datasource.username=flowable</argument>
                            <argument>--spring.datasource.password=flowable</argument>
                            <argument>--com.sun.management.jmxremote.port=4001</argument>
                        </arguments>
                    </configuration>
                </plugin>
            </plugins>
        </build>
    </profile>
</profiles>

</project>

4.3 修改配置

把 flowable-ui-app 中的属性文件拷贝过来。同时修改对应的数据库的信息

属性文件中的完整内容为：

#server.port=8080
server.servlet.context-path=/flowable-ui
spring.jmx.unique-names=true
# This is needed to force use of JDK proxies instead of using CGLIB
spring.aop.proxy-target-class=false
spring.aop.auto=false
spring.application.name=flowable-ui
spring.banner.location=classpath:/org/flowable/spring/boot/flowable-banner.txt
# The default domain for generating ObjectNames must be specified. Otherwise when multiple Spring Boot applications start in the same servlet container
# all would be created with the same name (com.zaxxer.hikari:name=dataSource,type=HikariDataSource) for example
spring.jmx.default-domain=${spring.application.name}
#
# SECURITY
#
spring.security.filter.dispatcher-types=REQUEST,FORWARD,ASYNC

# Expose all actuator endpoints to the web
# They are exposed, but only authenticated users can see /info and /health abd users with access-admin can see the others
management.endpoints.web.exposure.include=*
# Full health details should only be displayed when a user is authorized
management.endpoint.health.show-details=when_authorized
# Only users with role access-admin can access full health details
management.endpoint.health.roles=access-admin
# Spring prefixes the roles with ROLE_. However, Flowable does not have that concept yet, so we need to override that with an empty string
flowable.common.app.role-prefix=

#
# SECURITY OAuth2
# Examples are for Keycloak
#
#spring.security.oauth2.resourceserver.jwt.issuer-uri=<keycloakLocation>/auth/realms/<realmName>
#spring.security.oauth2.client.registration.keycloak.client-id=<clientId>
#spring.security.oauth2.client.registration.keycloak.client-secret=<clientSecret>
#spring.security.oauth2.client.registration.keycloak.client-name=Flowable UI Keycloak
#spring.security.oauth2.client.registration.keycloak.authorization-grant-type=authorization_code
#spring.security.oauth2.client.provider.keycloak.issuer-uri=<keycloakLocation>/auth/realms/<realmName>
#spring.security.oauth2.client.provider.keycloak.user-name-attribute=preferred_username

#flowable.common.app.security.type=oauth2
#flowable.common.app.security.oauth2.authorities-attribute=groups
#flowable.common.app.security.oauth2.groups-attribute=userGroups
#flowable.common.app.security.oauth2.default-authorities=access-task
#flowable.common.app.security.oauth2.default-groups=flowableUser
#flowable.common.app.security.oauth2.full-name-attribute=name
#flowable.common.app.security.oauth2.email-attribute=email

#
# DATABASE
#

#spring.datasource.driver-class-name=org.h2.Driver
# spring.datasource.url=jdbc:h2:~/flowable-db/engine-db;AUTO_SERVER=TRUE;AUTO_SERVER_PORT=9093;DB_CLOSE_DELAY=-1

spring.datasource.driver-class-name=com.mysql.cj.jdbc.Driver
spring.datasource.url=jdbc:mysql://localhost:3306/flowable?serverTimezone=UTC&nullCatalogMeansCurrent=true

#spring.datasource.driver-class-name=org.postgresql.Driver
#spring.datasource.url=jdbc:postgresql://localhost:5432/flowable

#spring.datasource.driver-class-name=com.microsoft.sqlserver.jdbc.SQLServerDriver
#spring.datasource.url=jdbc:sqlserver://localhost:1433;databaseName=flowablea

#spring.datasource.driver-class-name=oracle.jdbc.driver.OracleDriver
#spring.datasource.url=jdbc:oracle:thin:@localhost:1521:FLOWABLE

#spring.datasource.driver-class-name=com.ibm.db2.jcc.DB2Driver
#spring.datasource.url=jdbc:db2://localhost:50000/flowable

spring.datasource.username=root
spring.datasource.password=123456

# JNDI CONFIG

# If uncommented, the datasource will be looked up using the configured JNDI name.
# This will have preference over any datasource configuration done below that doesn't use JNDI
#
# Eg for JBoss: java:jboss/datasources/flowableDS
#
#spring.datasource.jndi-name==jdbc/flowableDS

# Set whether the lookup occurs in a J2EE container, i.e. if the prefix "java:comp/env/" needs to be added if the JNDI
# name doesn't already contain it. Default is "true".
#datasource.jndi.resourceRef=true

#
# Connection pool (see https://github.com/brettwooldridge/HikariCP#configuration-knobs-baby)
#

spring.datasource.hikari.poolName=${spring.application.name}
# 10 minutes
spring.datasource.hikari.maxLifetime=600000
# 5 minutes
spring.datasource.hikari.idleTimeout=300000
spring.datasource.hikari.minimumIdle=10
spring.datasource.hikari.maximumPoolSize=50
# test query for H2, MySQL, PostgreSQL and Microsoft SQL Server
#spring.datasource.hikari.connection-test-query=select 1
# test query for Oracle
#spring.datasource.hikari.connection-test-query=SELECT 1 FROM DUAL
# test query for DB2
#spring.datasource.hikari.connection-test-query=SELECT current date FROM sysibm.sysdummy1

#
# Default Task Executor (will be used for @Async)
#
spring.task.execution.pool.core-size=2
spring.task.execution.pool.max-size=50
spring.task.execution.pool.queue-capacity=10000
spring.task.execution.thread-name-prefix=flowable-ui-task-Executor-

#
# Task scheduling
#
spring.task.scheduling.pool.size=5

#
# EMAIL
#

#flowable.mail.server.host=localhost
#flowable.mail.server.port=1025
#flowable.mail.server.username=
#flowable.mail.server.password=

#
# FLOWABLE
#

flowable.process.definition-cache-limit=512
#flowable.dmn.strict-mode=false
flowable.process.async.executor.default-async-job-acquire-wait-time=PT5S
flowable.process.async.executor.default-timer-job-acquire-wait-time=PT5S

flowable.cmmn.async.executor.default-async-job-acquire-wait-time=PT5S
flowable.cmmn.async.executor.default-timer-job-acquire-wait-time=PT5S

# The maximum file upload limit. Set to -1 to set to 'no limit'. Expressed in bytes
spring.servlet.multipart.max-file-size=10MB
# The maximum request size limit. Set to -1 to set to 'no limit'.
# When multiple files can be uploaded this needs to be more than the 'max-file-size'.
spring.servlet.multipart.max-request-size=10MB

# For development purposes, data folder is created inside the sources ./data folder
flowable.content.storage.root-folder=data/
flowable.content.storage.create-root=true

flowable.common.app.idm-admin.user=admin
flowable.common.app.idm-admin.password=test

flowable.experimental.debugger.enabled=false

# Rest API in task application

# If false, disables the rest api in the task app
flowable.task.app.rest-enabled=true

# Configures the way user credentials are verified when doing a REST API call:
# 'any-user' : the user needs to exist and the password need to match. Any user is allowed to do the call (this is the pre 6.3.0 behavior)
# 'verify-privilege' : the user needs to exist, the password needs to match and the user needs to have the 'rest-api' privilege
# If nothing set, defaults to 'verify-privilege'
flowable.rest.app.authentication-mode=verify-privilege

# Enable form field validation after form submission on the engine side
flowable.form-field-validation-enabled=false

# Flowable Admin Properties

# Passwords for rest endpoints and master configs are stored encrypted in the database using AES/CBC/PKCS5PADDING
# It needs a 128-bit initialization vector (http://en.wikipedia.org/wiki/Initialization_vector)
# and a 128-bit secret key represented as 16 ascii characters below
#
# Do note that if these properties are changed after passwords have been saved, all existing passwords
# will not be able to be decrypted and the password would need to be reset in the UI.
flowable.admin.app.security.encryption.credentials-i-v-spec=j8kdO2hejA9lKmm6
flowable.admin.app.security.encryption.credentials-secret-spec=9FGl73ngxcOoJvmL
#flowable.admin.app.security.preemptive-basic-authentication=true

# Flowable IDM Properties

#
# LDAP
#
#flowable.idm.ldap.enabled=true
#flowable.idm.ldap.server=ldap://localhost
#flowable.idm.ldap.port=10389
#flowable.idm.ldap.user=uid=admin, ou=system
#flowable.idm.ldap.password=secret
#flowable.idm.ldap.base-dn=o=flowable
#flowable.idm.ldap.query.user-by-id=(&(objectClass=inetOrgPerson)(uid={0}))
#flowable.idm.ldap.query.user-by-full-name-like=(&(objectClass=inetOrgPerson)(|({0}=*{1}*)({2}=*{3}*)))
#flowable.idm.ldap.query.all-users=(objectClass=inetOrgPerson)
#flowable.idm.ldap.query.groups-for-user=(&(objectClass=groupOfUniqueNames)(uniqueMember={0}))
#flowable.idm.ldap.query.all-groups=(objectClass=groupOfUniqueNames)
#flowable.idm.ldap.query.group-by-id=(&(objectClass=groupOfUniqueNames)(uniqueId={0}))
#flowable.idm.ldap.attribute.user-id=uid
#flowable.idm.ldap.attribute.first-name=cn
#flowable.idm.ldap.attribute.last-name=sn
#flowable.idm.ldap.attribute.email=mail
#flowable.idm.ldap.attribute.group-id=cn
#flowable.idm.ldap.attribute.group-name=cn
#flowable.idm.ldap.cache.group-size=10000
#flowable.idm.ldap.cache.group-expiration=180000

#
# Keycloak
#
#flowable.idm.app.keycloak.enabled=true
#flowable.idm.app.keycloak.server=<keycloakLocation>
#flowable.idm.app.keycloak.authentication-realm=master
#flowable.idm.app.keycloak.authentication-user=admin
#flowable.idm.app.keycloak.authentication-password=admin
#flowable.idm.app.keycloak.realm=<realm>

#
# DEFAULT ADMINISTRATOR ACCOUNT
#

flowable.idm.app.admin.user-id=admin
flowable.idm.app.admin.password=test
flowable.idm.app.admin.first-name=Test
flowable.idm.app.admin.last-name=Administrator
flowable.idm.app.admin.email=test-admin@example-domain.tld

# Enable and configure JMS
#flowable.task.app.jms-enabled=true
#spring.activemq.broker-url=tcp://localhost:61616

# Enable and configure RabbitMQ
#flowable.task.app.rabbit-enabled=true
#spring.rabbitmq.addresses=localhost:5672
#spring.rabbitmq.username=guest
#spring.rabbitmq.password=guest

# Enable and configure Kafka
#flowable.task.app.kafka-enabled=true
#spring.kafka.bootstrap-servers=localhost:9092

当然在 SpringBoot 的默认属性文件中我们也可以添加对应的配置：
