【Spring Security】 Oauth2 授权服务令牌管理

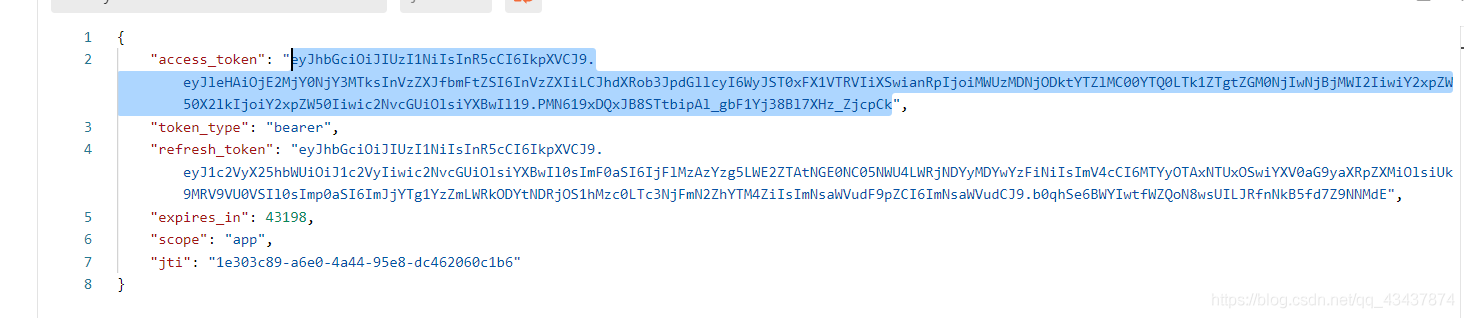

OAuth2AccessToken

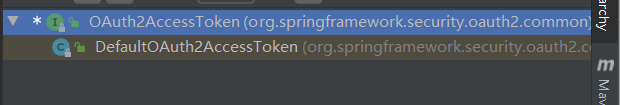

OAuth2AccessToken 接口定义了 OAuth2 令牌的相关结构和属性，他有一个默认的实现类 DefaultOAuth2AccessToken。

public interface OAuth2AccessToken {
    // 携带令牌访问的前缀
    public static String BEARER_TYPE = "Bearer";
    // OAuth2类型
    public static String OAUTH2_TYPE = "OAuth2";
    // 授权服务器颁发的访问令牌名，该值是必需的
    public static String ACCESS_TOKEN = "access_token";
    // 发行的令牌类型,值不区分大小写。该值是必需的
    public static String TOKEN_TYPE = "token_type";
    // 访问令牌的生命周期（以秒为单位）,例如，值“3600”表示访问令牌将在生成响应后的一小时内到期。该值是可选的。
    public static String EXPIRES_IN = "expires_in";
    // 刷新令牌,该值是可选的
    public static String REFRESH_TOKEN = "refresh_token";
    // 访问令牌的范围
    public static String SCOPE = "scope";
    // 令牌序列化程序使用 additionalInformation 映射来导出 OAuth 扩展使用的任何字段
    Map<String, Object> getAdditionalInformation();
    // 省略Getter setter
}

DefaultOAuth2AccessToken

DefaultOAuth2AccessToken 是 OAuth2AccessToken 接口的默认实现类。

public class DefaultOAuth2AccessToken implements Serializable, OAuth2AccessToken {

    private static final long serialVersionUID = 914967629530462926L;
    // 令牌值
    private String value;
    // 到期时间
    private Date expiration;
    // 令牌类型
    private String tokenType = BEARER_TYPE.toLowerCase();
    // 刷新令牌
    private OAuth2RefreshToken refreshToken;
    // 范围
    private Set<String> scope;
    // 序列化字段
    private Map<String, Object> additionalInformation = Collections.emptyMap();
    // 根据提供的值创建访问令牌
    public DefaultOAuth2AccessToken(String value) {
        this.value = value;
    }
    // 查询过期的便捷方法
    public boolean isExpired() {
        return expiration != null && expiration.before(new Date());
    }
    // 将Map转为OAuth2AccessToken
    public static OAuth2AccessToken valueOf(Map<String, String> tokenParams) {
        DefaultOAuth2AccessToken token = new DefaultOAuth2AccessToken(tokenParams.get(ACCESS_TOKEN));

        if (tokenParams.containsKey(EXPIRES_IN)) {
            long expiration = 0;
            try {
                expiration = Long.parseLong(String.valueOf(tokenParams.get(EXPIRES_IN)));
            }
            catch (NumberFormatException e) {
                // fall through...
            }
            token.setExpiration(new Date(System.currentTimeMillis() + (expiration * 1000L)));
        }

        if (tokenParams.containsKey(REFRESH_TOKEN)) {
            String refresh = tokenParams.get(REFRESH_TOKEN);
            DefaultOAuth2RefreshToken refreshToken = new DefaultOAuth2RefreshToken(refresh);
            token.setRefreshToken(refreshToken);
        }

        if (tokenParams.containsKey(SCOPE)) {
            Set<String> scope = new TreeSet<String>();
            for (StringTokenizer tokenizer = new StringTokenizer(tokenParams.get(SCOPE), " ,"); tokenizer
                    .hasMoreTokens();) {
                scope.add(tokenizer.nextToken());
            }
            token.setScope(scope);
        }

        if (tokenParams.containsKey(TOKEN_TYPE)) {
            token.setTokenType(tokenParams.get(TOKEN_TYPE));
        }

        return token;
    }

AuthorizationServerTokenServices

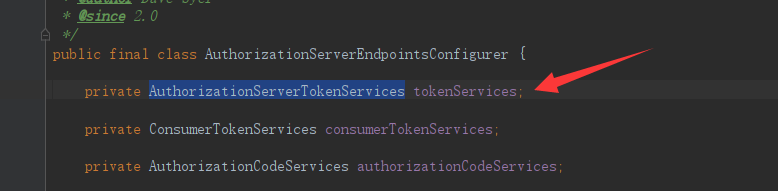

在上篇文档中介绍到在 AuthorizationServerEndpointsConfigurer 端点配置类中，有一个 AuthorizationServerTokenServices 属性。

接口

AuthorizationServerTokenServices 接口定义了一些操作使得你可以对令牌进行一些必要的管理，令牌可以被用来加载身份信息，里面包含了这个令牌的相关权限。

public interface AuthorizationServerTokenServices {
    // 创建与指定凭据OAuth2Authentication关联的访问令牌
    OAuth2AccessToken createAccessToken(OAuth2Authentication authentication) throws AuthenticationException;
    // 刷新访问令牌
    OAuth2AccessToken refreshAccessToken(String refreshToken, TokenRequest tokenRequest)
            throws AuthenticationException;
    // 提供的身份验证密钥存储的访问令牌（如果存在）
    OAuth2AccessToken getAccessToken(OAuth2Authentication authentication);

}

实现类

DefaultTokenServices 是 AuthorizationServerTokenServices 的唯一默认实现类。

//
public class DefaultTokenServices implements AuthorizationServerTokenServices, ResourceServerTokenServices,
        ConsumerTokenServices, InitializingBean {
    // 刷新令牌的过期时间，默认30天
    private int refreshTokenValiditySeconds = 60 * 60 * 24 * 30; // default 30 days.
    // 访问令牌的过期时间，默认12小时
    private int accessTokenValiditySeconds = 60 * 60 * 12; // default 12 hours.
    // 是否支持刷新令牌
    private boolean supportRefreshToken = false;
    // 重用刷新令牌
    private boolean reuseRefreshToken = true;
    // 令牌存储
    private TokenStore tokenStore;
    // ClientDetailsService
    private ClientDetailsService clientDetailsService;
    // 令牌增强器
    private TokenEnhancer accessTokenEnhancer;
    // 认证管理器
    private AuthenticationManager authenticationManager;
    // 创建访问令牌
    @Transactional
    public OAuth2AccessToken createAccessToken(OAuth2Authentication authentication) throws AuthenticationException {
        // 1. tokenStore中获取令牌
        OAuth2AccessToken existingAccessToken = tokenStore.getAccessToken(authentication);
        OAuth2RefreshToken refreshToken = null;
        if (existingAccessToken != null) {
            // 2. 获取令牌有，但是过期了，则移除访问令牌及刷新令牌
            if (existingAccessToken.isExpired()) {
                if (existingAccessToken.getRefreshToken() != null) {
                    refreshToken = existingAccessToken.getRefreshToken();
                    // The token store could remove the refresh token when the
                    // access token is removed, but we want to
                    // be sure...
                    tokenStore.removeRefreshToken(refreshToken);
                }
                tokenStore.removeAccessToken(existingAccessToken);
            }
            else {
                // 3.有令牌未过期，重新存储访问令牌以防身份验证发生变化
                // Re-store the access token in case the authentication has changed
                tokenStore.storeAccessToken(existingAccessToken, authentication);
                return existingAccessToken;
            }
        }

        // Only create a new refresh token if there wasn't an existing one
        // associated with an expired access token.
        // Clients might be holding existing refresh tokens, so we re-use it in
        // the case that the old access token
        // expired.
        // 4. 刷新令牌获取访问令牌为空，则创建
        if (refreshToken == null) {
            refreshToken = createRefreshToken(authentication);
        }
        // But the refresh token itself might need to be re-issued if it has
        // expired.
        else if (refreshToken instanceof ExpiringOAuth2RefreshToken) {
            ExpiringOAuth2RefreshToken expiring = (ExpiringOAuth2RefreshToken) refreshToken;
            if (System.currentTimeMillis() > expiring.getExpiration().getTime()) {
                refreshToken = createRefreshToken(authentication);
            }
        }
        // 5. 创建并存储令牌
        OAuth2AccessToken accessToken = createAccessToken(authentication, refreshToken);
        tokenStore.storeAccessToken(accessToken, authentication);
        // In case it was modified
        refreshToken = accessToken.getRefreshToken();
        if (refreshToken != null) {
            tokenStore.storeRefreshToken(refreshToken, authentication);
        }
        return accessToken;

    }
    // 刷新访问令牌
    @Transactional(noRollbackFor={InvalidTokenException.class, InvalidGrantException.class})
    public OAuth2AccessToken refreshAccessToken(String refreshTokenValue, TokenRequest tokenRequest)
            throws AuthenticationException {
        // 当前client不支持刷新，抛出InvalidGrantException
        if (!supportRefreshToken) {
            throw new InvalidGrantException("Invalid refresh token: " + refreshTokenValue);
        }
        // 获取刷新令牌，没有抛出InvalidGrantException
        OAuth2RefreshToken refreshToken = tokenStore.readRefreshToken(refreshTokenValue);
        if (refreshToken == null) {
            throw new InvalidGrantException("Invalid refresh token: " + refreshTokenValue);
        }
        // 使用刷新令牌，返回新的访问令牌
        OAuth2Authentication authentication = tokenStore.readAuthenticationForRefreshToken(refreshToken);
        if (this.authenticationManager != null && !authentication.isClientOnly()) {
            // The client has already been authenticated, but the user authentication might be old now, so give it a
            // chance to re-authenticate.
            Authentication user = new PreAuthenticatedAuthenticationToken(authentication.getUserAuthentication(), "", authentication.getAuthorities());
            user = authenticationManager.authenticate(user);
            Object details = authentication.getDetails();
            authentication = new OAuth2Authentication(authentication.getOAuth2Request(), user);
            authentication.setDetails(details);
        }
        String clientId = authentication.getOAuth2Request().getClientId();
        if (clientId == null || !clientId.equals(tokenRequest.getClientId())) {
            throw new InvalidGrantException("Wrong client for this refresh token: " + refreshTokenValue);
        }

        // clear out any access tokens already associated with the refresh
        // token.
        tokenStore.removeAccessTokenUsingRefreshToken(refreshToken);

        if (isExpired(refreshToken)) {
            tokenStore.removeRefreshToken(refreshToken);
            throw new InvalidTokenException("Invalid refresh token (expired): " + refreshToken);
        }

        authentication = createRefreshedAuthentication(authentication, tokenRequest);

        if (!reuseRefreshToken) {
            tokenStore.removeRefreshToken(refreshToken);
            refreshToken = createRefreshToken(authentication);
        }

        OAuth2AccessToken accessToken = createAccessToken(authentication, refreshToken);
        tokenStore.storeAccessToken(accessToken, authentication);
        if (!reuseRefreshToken) {
            tokenStore.storeRefreshToken(accessToken.getRefreshToken(), authentication);
        }
        return accessToken;
    }

    public OAuth2AccessToken getAccessToken(OAuth2Authentication authentication) {
        return tokenStore.getAccessToken(authentication);
    }

    /**
     * Create a refreshed authentication.
     *  创建刷新的身份验证
     * @param authentication The authentication.
     * @param request The scope for the refreshed token.
     * @return The refreshed authentication.
     * @throws InvalidScopeException If the scope requested is invalid or wider than the original scope.
     */
    private OAuth2Authentication createRefreshedAuthentication(OAuth2Authentication authentication, TokenRequest request) {
        OAuth2Authentication narrowed = authentication;
        Set<String> scope = request.getScope();
        OAuth2Request clientAuth = authentication.getOAuth2Request().refresh(request);
        if (scope != null && !scope.isEmpty()) {
            Set<String> originalScope = clientAuth.getScope();
            if (originalScope == null || !originalScope.containsAll(scope)) {
                throw new InvalidScopeException("Unable to narrow the scope of the client authentication to " + scope
                        + ".", originalScope);
            }
            else {
                clientAuth = clientAuth.narrowScope(scope);
            }
        }
        narrowed = new OAuth2Authentication(clientAuth, authentication.getUserAuthentication());
        return narrowed;
    }

    protected boolean isExpired(OAuth2RefreshToken refreshToken) {
        if (refreshToken instanceof ExpiringOAuth2RefreshToken) {
            ExpiringOAuth2RefreshToken expiringToken = (ExpiringOAuth2RefreshToken) refreshToken;
            return expiringToken.getExpiration() == null
                    || System.currentTimeMillis() > expiringToken.getExpiration().getTime();
        }
        return false;
    }

    public OAuth2AccessToken readAccessToken(String accessToken) {
        return tokenStore.readAccessToken(accessToken);
    }

    public OAuth2Authentication loadAuthentication(String accessTokenValue) throws AuthenticationException,
            InvalidTokenException {
        OAuth2AccessToken accessToken = tokenStore.readAccessToken(accessTokenValue);
        if (accessToken == null) {
            throw new InvalidTokenException("Invalid access token: " + accessTokenValue);
        }
        else if (accessToken.isExpired()) {
            tokenStore.removeAccessToken(accessToken);
            throw new InvalidTokenException("Access token expired: " + accessTokenValue);
        }

        OAuth2Authentication result = tokenStore.readAuthentication(accessToken);
        if (result == null) {
            // in case of race condition
            throw new InvalidTokenException("Invalid access token: " + accessTokenValue);
        }
        if (clientDetailsService != null) {
            String clientId = result.getOAuth2Request().getClientId();
            try {
                clientDetailsService.loadClientByClientId(clientId);
            }
            catch (ClientRegistrationException e) {
                throw new InvalidTokenException("Client not valid: " + clientId, e);
            }
        }
        return result;
    }

    public String getClientId(String tokenValue) {
        OAuth2Authentication authentication = tokenStore.readAuthentication(tokenValue);
        if (authentication == null) {
            throw new InvalidTokenException("Invalid access token: " + tokenValue);
        }
        OAuth2Request clientAuth = authentication.getOAuth2Request();
        if (clientAuth == null) {
            throw new InvalidTokenException("Invalid access token (no client id): " + tokenValue);
        }
        return clientAuth.getClientId();
    }

    public boolean revokeToken(String tokenValue) {
        OAuth2AccessToken accessToken = tokenStore.readAccessToken(tokenValue);
        if (accessToken == null) {
            return false;
        }
        if (accessToken.getRefreshToken() != null) {
            tokenStore.removeRefreshToken(accessToken.getRefreshToken());
        }
        tokenStore.removeAccessToken(accessToken);
        return true;
    }

    private OAuth2RefreshToken createRefreshToken(OAuth2Authentication authentication) {
        if (!isSupportRefreshToken(authentication.getOAuth2Request())) {
            return null;
        }
        int validitySeconds = getRefreshTokenValiditySeconds(authentication.getOAuth2Request());
        String value = UUID.randomUUID().toString();
        if (validitySeconds > 0) {
            return new DefaultExpiringOAuth2RefreshToken(value, new Date(System.currentTimeMillis()
                    + (validitySeconds * 1000L)));
        }
        return new DefaultOAuth2RefreshToken(value);
    }

    private OAuth2AccessToken createAccessToken(OAuth2Authentication authentication, OAuth2RefreshToken refreshToken) {
        DefaultOAuth2AccessToken token = new DefaultOAuth2AccessToken(UUID.randomUUID().toString());
        int validitySeconds = getAccessTokenValiditySeconds(authentication.getOAuth2Request());
        if (validitySeconds > 0) {
            token.setExpiration(new Date(System.currentTimeMillis() + (validitySeconds * 1000L)));
        }
        token.setRefreshToken(refreshToken);
        token.setScope(authentication.getOAuth2Request().getScope());

        return accessTokenEnhancer != null ? accessTokenEnhancer.enhance(token, authentication) : token;
    }

    /**
     * The access token validity period in seconds
     *
     * @param clientAuth the current authorization request
     * @return the access token validity period in seconds
     */
    protected int getAccessTokenValiditySeconds(OAuth2Request clientAuth) {
        if (clientDetailsService != null) {
            ClientDetails client = clientDetailsService.loadClientByClientId(clientAuth.getClientId());
            Integer validity = client.getAccessTokenValiditySeconds();
            if (validity != null) {
                return validity;
            }
        }
        return accessTokenValiditySeconds;
    }

    /**
     * The refresh token validity period in seconds
     *
     * @param clientAuth the current authorization request
     * @return the refresh token validity period in seconds
     */
    protected int getRefreshTokenValiditySeconds(OAuth2Request clientAuth) {
        if (clientDetailsService != null) {
            ClientDetails client = clientDetailsService.loadClientByClientId(clientAuth.getClientId());
            Integer validity = client.getRefreshTokenValiditySeconds();
            if (validity != null) {
                return validity;
            }
        }
        return refreshTokenValiditySeconds;
    }

    /**
     * Is a refresh token supported for this client (or the global setting if
     * {@link #setClientDetailsService(ClientDetailsService) clientDetailsService} is not set.
     *
     * @param clientAuth the current authorization request
     * @return boolean to indicate if refresh token is supported
     */
    protected boolean isSupportRefreshToken(OAuth2Request clientAuth) {
        if (clientDetailsService != null) {
            ClientDetails client = clientDetailsService.loadClientByClientId(clientAuth.getClientId());
            return client.getAuthorizedGrantTypes().contains("refresh_token");
        }
        return this.supportRefreshToken;
    }

    /**
     * An access token enhancer that will be applied to a new token before it is saved in the token store.
     *
     * @param accessTokenEnhancer the access token enhancer to set
     */
    public void setTokenEnhancer(TokenEnhancer accessTokenEnhancer) {
        this.accessTokenEnhancer = accessTokenEnhancer;
    }

    /**
     * The validity (in seconds) of the refresh token. If less than or equal to zero then the tokens will be
     * non-expiring.
     *
     * @param refreshTokenValiditySeconds The validity (in seconds) of the refresh token.
     */
    public void setRefreshTokenValiditySeconds(int refreshTokenValiditySeconds) {
        this.refreshTokenValiditySeconds = refreshTokenValiditySeconds;
    }

    /**
     * The default validity (in seconds) of the access token. Zero or negative for non-expiring tokens. If a client
     * details service is set the validity period will be read from the client, defaulting to this value if not defined
     * by the client.
     *
     * @param accessTokenValiditySeconds The validity (in seconds) of the access token.
     */
    public void setAccessTokenValiditySeconds(int accessTokenValiditySeconds) {
        this.accessTokenValiditySeconds = accessTokenValiditySeconds;
    }

    /**
     * Whether to support the refresh token.
     *
     * @param supportRefreshToken Whether to support the refresh token.
     */
    public void setSupportRefreshToken(boolean supportRefreshToken) {
        this.supportRefreshToken = supportRefreshToken;
    }

    /**
     * Whether to reuse refresh tokens (until expired).
     *
     * @param reuseRefreshToken Whether to reuse refresh tokens (until expired).
     */
    public void setReuseRefreshToken(boolean reuseRefreshToken) {
        this.reuseRefreshToken = reuseRefreshToken;
    }

    /**
     * The persistence strategy for token storage.
     *
     * @param tokenStore the store for access and refresh tokens.
     */
    public void setTokenStore(TokenStore tokenStore) {
        this.tokenStore = tokenStore;
    }

    /**
     * An authentication manager that will be used (if provided) to check the user authentication when a token is
     * refreshed.
     *
     * @param authenticationManager the authenticationManager to set
     */
    public void setAuthenticationManager(AuthenticationManager authenticationManager) {
        this.authenticationManager = authenticationManager;
    }

    /**
     * The client details service to use for looking up clients (if necessary). Optional if the access token expiry is
     * set globally via {@link #setAccessTokenValiditySeconds(int)}.
     *
     * @param clientDetailsService the client details service
     */
    public void setClientDetailsService(ClientDetailsService clientDetailsService) {
        this.clientDetailsService = clientDetailsService;
    }
}

令牌存储

TokenStore

TokenStore 是 OAuth2 令牌的持久性接口，定义了存储及获取令牌的相关方法。

public interface TokenStore {

    /**
     * Read the authentication stored under the specified token value.
     *
     * @param token The token value under which the authentication is stored.
     * @return The authentication, or null if none.
     */
    OAuth2Authentication readAuthentication(OAuth2AccessToken token);

    /**
     * Read the authentication stored under the specified token value.
     *
     * @param token The token value under which the authentication is stored.
     * @return The authentication, or null if none.
     */
    OAuth2Authentication readAuthentication(String token);

    /**
     * Store an access token.
     *
     * @param token The token to store.
     * @param authentication The authentication associated with the token.
     */
    void storeAccessToken(OAuth2AccessToken token, OAuth2Authentication authentication);

    /**
     * Read an access token from the store.
     *
     * @param tokenValue The token value.
     * @return The access token to read.
     */
    OAuth2AccessToken readAccessToken(String tokenValue);

    /**
     * Remove an access token from the store.
     *
     * @param token The token to remove from the store.
     */
    void removeAccessToken(OAuth2AccessToken token);

    /**
     * Store the specified refresh token in the store.
     *
     * @param refreshToken The refresh token to store.
     * @param authentication The authentication associated with the refresh token.
     */
    void storeRefreshToken(OAuth2RefreshToken refreshToken, OAuth2Authentication authentication);

    /**
     * Read a refresh token from the store.
     *
     * @param tokenValue The value of the token to read.
     * @return The token.
     */
    OAuth2RefreshToken readRefreshToken(String tokenValue);

    /**
     * @param token a refresh token
     * @return the authentication originally used to grant the refresh token
     */
    OAuth2Authentication readAuthenticationForRefreshToken(OAuth2RefreshToken token);

    /**
     * Remove a refresh token from the store.
     *
     * @param token The token to remove from the store.
     */
    void removeRefreshToken(OAuth2RefreshToken token);

    /**
     * Remove an access token using a refresh token. This functionality is necessary so refresh tokens can't be used to
     * create an unlimited number of access tokens.
     *
     * @param refreshToken The refresh token.
     */
    void removeAccessTokenUsingRefreshToken(OAuth2RefreshToken refreshToken);

    /**
     * Retrieve an access token stored against the provided authentication key, if it exists.
     *
     * @param authentication the authentication key for the access token
     *
     * @return the access token or null if there was none
     */
    OAuth2AccessToken getAccessToken(OAuth2Authentication authentication);

    /**
     * @param clientId the client id to search
     * @param userName the user name to search
     * @return a collection of access tokens
     */
    Collection<OAuth2AccessToken> findTokensByClientIdAndUserName(String clientId, String userName);
    /**
     * @param clientId the client id to search
     * @return a collection of access tokens
     */
    Collection<OAuth2AccessToken> findTokensByClientId(String clientId);
}

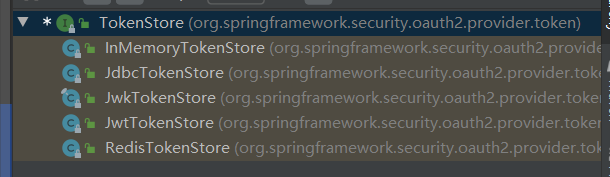

TokenStore 实现类

TokenStore 有以下实现类，每一个对应一种存储方式，可以使用内存、数据库、JWT、Redis 来保存我们的令牌。

默认使用的是 InMemoryTokenStore 来存储，如果用数据库，那么每次 token 服务查询、存储，都需要 SQL 操作，可以使用 JwtTokenStore，将令牌保存在 JWT 中。

使用 JwtTokenStore 存储，会涉及到 JWT 转换，框架也提供了 JwtAccessTokenConverter 类来处理。

它可以把令牌相关的数据进行编码（因此对于后端服务来说，它不需要进行存储，这将是一个重大优势），但是它有一个缺点，那就是撤销一个已经授权令牌将会非常困难，所以它通常用来处理一个生命周期较短的令牌以及撤销刷新令牌（refresh_token）。另外一个缺点就是这个令牌占用的空间会比较大，如果你加入了比较多用户凭证信息。

JwtAccessTokenConverter 使用 enhance 方法对 token 进行增强。

public OAuth2AccessToken enhance(OAuth2AccessToken accessToken, OAuth2Authentication authentication) {
        DefaultOAuth2AccessToken result = new DefaultOAuth2AccessToken(accessToken);
        Map<String, Object> info = new LinkedHashMap<String, Object>(accessToken.getAdditionalInformation());
        String tokenId = result.getValue();
        // 原先的令牌，存为 jti: token
        if (!info.containsKey(TOKEN_ID)) {
            info.put(TOKEN_ID, tokenId);
        }
        else {
            tokenId = (String) info.get(TOKEN_ID);
        }
        // 设置附加信息
        result.setAdditionalInformation(info);
        // JwtHelper.encode
        result.setValue(encode(result, authentication));
        // 处理刷新令牌
        OAuth2RefreshToken refreshToken = result.getRefreshToken();
        if (refreshToken != null) {
            DefaultOAuth2AccessToken encodedRefreshToken = new DefaultOAuth2AccessToken(accessToken);
            encodedRefreshToken.setValue(refreshToken.getValue());
            // Refresh tokens do not expire unless explicitly of the right type
            encodedRefreshToken.setExpiration(null);
            try {
                Map<String, Object> claims = objectMapper
                        .parseMap(JwtHelper.decode(refreshToken.getValue()).getClaims());
                if (claims.containsKey(TOKEN_ID)) {
                    encodedRefreshToken.setValue(claims.get(TOKEN_ID).toString());
                }
            }
            catch (IllegalArgumentException e) {
            }
            Map<String, Object> refreshTokenInfo = new LinkedHashMap<String, Object>(
                    accessToken.getAdditionalInformation());
            refreshTokenInfo.put(TOKEN_ID, encodedRefreshToken.getValue());
            refreshTokenInfo.put(ACCESS_TOKEN_ID, tokenId);
            encodedRefreshToken.setAdditionalInformation(refreshTokenInfo);
            DefaultOAuth2RefreshToken token = new DefaultOAuth2RefreshToken(
                    encode(encodedRefreshToken, authentication));
            if (refreshToken instanceof ExpiringOAuth2RefreshToken) {
                Date expiration = ((ExpiringOAuth2RefreshToken) refreshToken).getExpiration();
                encodedRefreshToken.setExpiration(expiration);
                token = new DefaultExpiringOAuth2RefreshToken(encode(encodedRefreshToken, authentication), expiration);
            }
            result.setRefreshToken(token);
        }
        return result;
    }

设置 JWT 令牌

通过以上源码分析，我们如果需要使用 JWT 令牌，那么我们需要设置 JWT 存储及转换器，并设置到 AuthorizationServerEndpointsConfigurer 配置中即可。

注入 TokenStore 及 JwtAccessTokenConverter

@Configuration
public class MyAuthorizationServerConfigurationBean {

    // 令牌存储
    @Bean
    public TokenStore jwtTokenStore(JwtAccessTokenConverter jwtAccessTokenConverter) {
        return new JwtTokenStore(jwtAccessTokenConverter);
    }
    // Jwt转换器
    @Bean
    public JwtAccessTokenConverter jwtAccessTokenConverter() {
        JwtAccessTokenConverter converter = new JwtAccessTokenConverter();
        converter.setSigningKey("123456");
        return converter;
    }
}

AuthorizationServerEndpointsConfigurer 添加 TokenStore 及 JwtAccessTokenConverter

    @Autowired
    private TokenStore jwtTokenStore;
    @Autowired
    private JwtAccessTokenConverter jwtAccessTokenConverter;

    // 端点配置
    @Override
    public void configure(AuthorizationServerEndpointsConfigurer endpoints) throws Exception {
        // 配置端点允许的请求方式
        endpoints.allowedTokenEndpointRequestMethods(HttpMethod.GET, HttpMethod.POST);
        // 配置认证管理器
        endpoints.authenticationManager(authenticationManager);
        // JWT令牌转换器
        endpoints.accessTokenConverter(jwtAccessTokenConverter);
        // JWT 存储令牌
        endpoints.tokenStore(jwtTokenStore);
    }

使用密码模式访问令牌，返回了 JWT 令牌。
使用 JwtHelper.decode 方法进行解析，发现可以直接解析出我们的用户及其权限信息，实际这是不安全的。。。而且如果权限很多，那么这个 JWT 将会很长很长。。。

{"exp":1626466719,"user_name":"user","authorities":["ROLE_USER"],"jti":"1e303c89-a6e0-4a44-95e8-dc462060c1b6","client_id":"client","scope":["app"]}

【Spring Security】 Oauth2 授权服务 令牌管理

Metadata

【Spring Security】 Oauth2 授权服务 令牌管理

OAuth2AccessToken

DefaultOAuth2AccessToken

AuthorizationServerTokenServices

接口

实现类

令牌存储

TokenStore

TokenStore 实现类

设置 JWT 令牌

【Spring Security】 Oauth2 授权服务令牌管理

【Spring Security】 Oauth2 授权服务令牌管理
